Professional LED Panel Light Manufacturer
We are a reliable LED panel light manufacturer and exporter in China. We provide high-quality office indoor lamps to clients all over the world.
LEDBLOC's LED Panel Lighting
LED panel lights are a versatile lighting solution used in offices, commercial venues, homes, kitchens, and gyms/sports facilities. They are typically flush-mounted to the ceiling to give them a sleek and modern appearance and provide a wide range of area illumination.

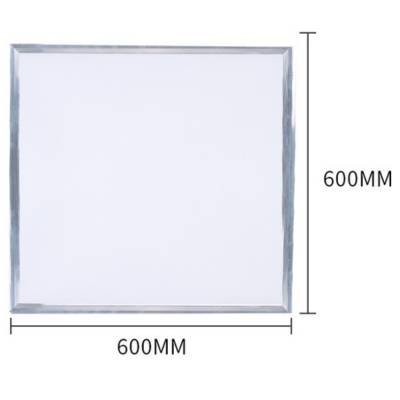

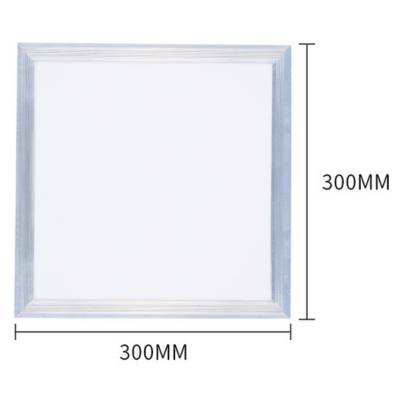

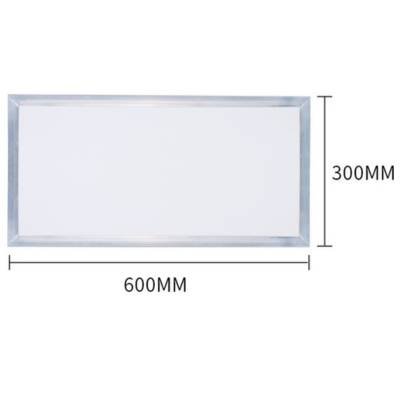

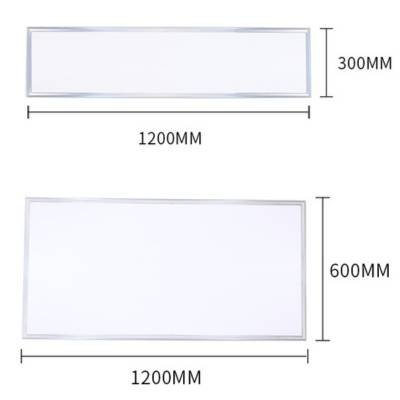

We have developed a series of flat panel lights including backlit and edge-lit types to cater to the current market. And there are various specifications including 1ft*1ft, 1ft*2ft, 2ft*2ft, 4ft*1ft, and 4ft*2ff.
In order to adapt to different countries’ power grids and usage habits, our luminaires can be supplied with voltages ranging from AC85-265V and with the option of using a backup power supply.
It can select Surface mounted, Suspended mounted, and Recessed mounted methods to meet your specific needs.
Features of our LED Panel lights
This product is well-designed and market-validated, with a number of selling points. It can give you an edge in the market.
Uniform brightness of the whole lamp without dark areas.
Our Flat panel light CRI>90 to suit commercial use.
No flicker to interfere with use or hurt eyes.
Light-transmitting panels made of PP material.
LED Backlit panel lights
This direct-emit panel light is designed to be integrated with the ceiling. It can achieve the effect of seeing the light without seeing the lamp.
They are made of high-quality aluminum frames with painted finish, metal bases, and flame-retardant materials.
These lamps are 20W 40W 58W 60W 80W 96W optional and you can customize your own wattages.
These lamps are large in size, have a large luminous area, and have soft light, making them suitable for use in large offices, conference rooms, shopping centers, and halls.
ultra-thin LED panel Downlights
LED Small panel downlights are also used for the ceiling as the Primary or secondary light source.
Compared with ordinary downlights, this light is integrated with the ceiling and is not blinding.
We offer both round and square shapes and sizes from 105 to 280 millimeters with power ranging from 6W to 24W.
6W 105x105mm
9W 145x145mm
12W 155x155mm
18W 205x205mm
24W 280x280mm
6W Φ105mm
9W Φ145mm
9W Φ155mm
18W Φ205mm
24W Φ280mm
This lamp has a very wide range of applications and can be used in almost all scenarios such as living rooms, bedrooms, offices, lobbies, commercial places, etc.
LED Clean Room Panel lights
This lamp is our new panel light with black technology, designed specifically for dust-free environments.
It is suitable for hospital corridors, operating rooms, clean rooms, yoga rooms, etc., with a flush-mounted installation.
This lamp is made of a special material and sprayed with a special coating, so it will not yellow or rust even after long-term use.
lED Explosion-Proof Flat Lamp
This explosion-proof panel light features a metal protective net for enhanced safety, making it suitable for use in gas stations, warehouses, chemical factories, hospitals, banks, and other hazardous environments.
These fixtures are suitable for integrated ceilings, gypsum ceilings, keel ceilings, mineral wool ceilings, and so on.
LED sports field Panel lighting
We have designed special fixtures for venue lighting, badminton lights, and billiard room lights.
We carefully design and use high-quality materials and assembly processes to create these fixtures.
These fixtures feature our double-layer eye protection technology and a variety of installation methods to suit professional venues.
More Related Product Recommendations
There are other options such as Human sensor panel light, Edge-lit small panel downlight, and surface-mounted panel light. You can ask us for the details sheet.
Our design philosophy and product details
Careful design and innovative technology are the keys to keeping our products alive. We pay attention to the details and performance of our products.
Quality optical design
Our light panels have a reasonable layout of LEDs and come with optical lenses, with a luminous efficacy of up to 110LM/W. The light is very soft and non-glare after reflection and scattering.
Flat panel details
Our products are made with high-quality materials and components, and feature a multi-layer optical layout that ensures top-notch performance and longevity.
Small panel details
Using an extremely thin design concept, the entire lamp is less than 20 millimeters thick and weighs less than 570 grams. They are also highly energy-efficient and offer consistent light output.
Tailor-made Your LED Panel Lights
We can help you to tailor your own types of lights such as the applications, dimensions, CCT, and so on to cater to your specific needs.
Germicidal kitchen & bath lights
Adopts 405nm UV LED as the light source, which can kill all kinds of bacteria without causing harm to the human body.
Customized you panel light size
To adapt to special needs, we can customize your own flat panel light sizes, such as 1200x200mm, 1200x100mm, or 1200x150mm.
Customized your light color
We can easily customize the CCT (2700K 3000K 4000K 4500K 5000K 6000K 6500K) and seven colorful light colors for you.
FAQs of LED Panel Lightings
Here are some frequently asked questions from our customers, and we have provided detailed answers for your reference.
Introduce Backlit panel lights
Working Principle
The light source plate is on the bottom, and the single beads have individual Fresnel lenses affixed to them, allowing the light to flash downward at a specific angle to illuminate the area below.
Structure
From bottom to top: Base plate, 72pcs LM80 LED chips on the aluminum board with optical lens, PS diffuser plate, pure aluminum surface frame.
Advantages:
- Good heat dissipation performance;
- Light efficiency up to 120Lm.
Disadvantages:
- The lamp body is thicker, and can not be used in places with low ceilings;
- It is difficult to re-glue the lens after it has been dropped, resulting in defective use.
Introduce Edge-lit panel lights
Working Principle
The light source of the side-emitting panel lamp is closely fitted to the bezel, and the light is refracted by the diffuser plate, which spreads the light out and scatters it down. And then the light is diffused through the diffuser board to create an even and soft light to illuminate specific areas below.
Structure
From bottom to top: Iron back cover, mirror paper, light guide plate, Diffusion board, Aluminum frame, LED source.
Advantages:
- The whole light is thin and lightweight, which can be adapted to many applications;
- Good light consistency.
Disadvantages:
- The Diffusion panel temperature is high, the panel will appear yellowing after a long time of use;
- The light effect is difficult to achieve more than 100LM, or need to pay higher costs.
How to select from backlit vs edge-light panels?
Backlight panel lights use fewer materials and have a simpler manufacturing process, which makes them more efficient and cost-effective to produce.
Backlight panel lights have a low UGR, which makes them more comfortable for the eyes. They are also a popular choice for commercial and residential lighting.
If you are a dealer, backlight panel lights should be your main product. If you are a contractor, you can choose panel light types according to the specific requirements of the project and the needs of customers.
The following factors and resolutions for your reference:
- Measuring the size of your site.
- Choose the right fixture specifications according to the characteristics and size of the venue.
- Calculate the number of fixtures needed based on the brightness you want to achieve.
- Choosing the right color temperature.
- Calculation of expenditures.
Integrated ceiling installation method
Non-integrated ceiling installation method
Installation Methods for Surface Mounting
Installation Instructions
1. Non-integrated ceiling needs to add a conversion frame.
For PVC ceiling, gypsum ceiling, and plastic grommet ceiling, widen the hole to 305x605mm or 305x305mm.
2. How to wire
Yellow ground wire, red to L, blue to N.
Ultra-thin panel light installation method
For more information, please refer to our installation instructions.
Leading-Edge panel light production capability
We have a 1,500-square-meter professional panel light production site, with multiple assembly lines and a number of automated gluing machines and screw machines.
Cutting-edge production process
The entire production process is smooth and efficient, thanks to carefully designed steps, a streamlined assembly line, and skilled workers.
Quality management
The quality control process includes an end-of-line inspection and light-up test, as well as a 24-hour aging test on the aging line.
Intimate Service
We have served hundreds of clients over the years, and we have a deep understanding of their real needs. We hope that our professional service can help you.
We have accumulated a lot of experience o to service your commercial lighting business in the past years.
We know your core pains in your business affairs, so we can serve you better in product planning and cost control.
Yes, we will offer you the best price if you place a big order for us.
We can provide full technical services for you.
You can list your needs products in spreadsheets sent to us, and our salesman will contact you soon.
