China Professional LED Strip Lights Supplier
We have been supplying various types of LED strips to global dealers for 10 years. We understand your core needs very well, so you can benefit from us constantly.
LEDBLOC's LED Strip Lights
It is hard to find a reliable and professional manufacturer in China to withstand your distribution or Project needs. Because of communication issues, price issues, quality issues, shipping issues, etc.
Our LED strip lights are versatile and various of types to meet every specific requirement in residential, commercial, and industrial use. Each style can be further divided into multiple styles based on color, wattage, etc.
As a company in the LED lighting industry, we have always maintained our products at a mid-to-high level and at a lower price, so that our customers can cooperate with us for a longer time and earn more profits.
Please fill out an online form to get the new details.
Types of LEDBLOC 's LED Strip Lights
Multiple high-bright LED strip lighting types can be selected for your home or commercial use. Each style is well-designed and versatile that can meet your specific requirements.

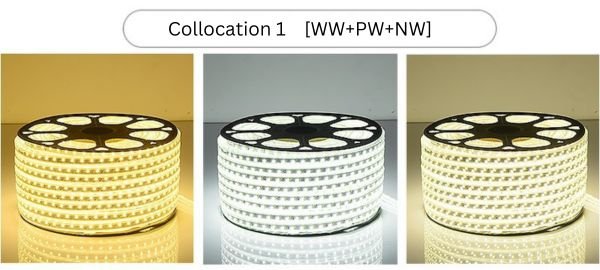

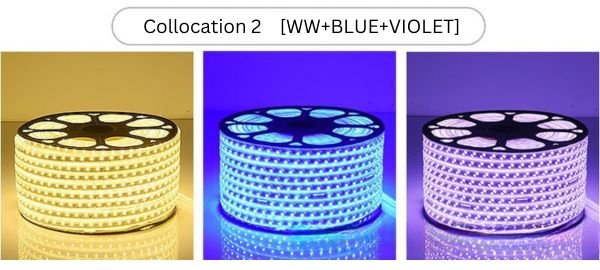

Residential led strip lighting Series
Our home series high bright strips have more than 7 colors optional and using 2835/ 5050 highlight LEDs can light up more area. It is powered by the AC85-265V input DC power supply that can be suitable for more countries’ grids.

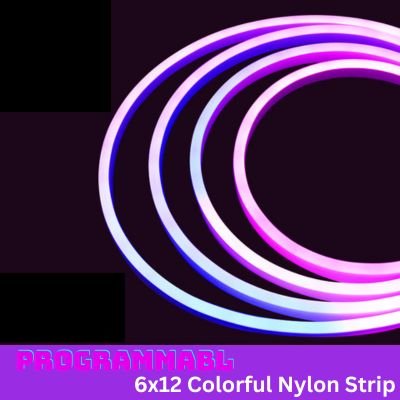

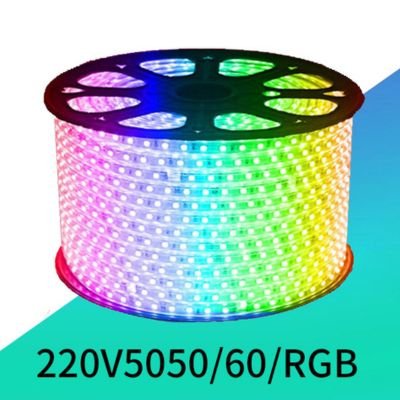

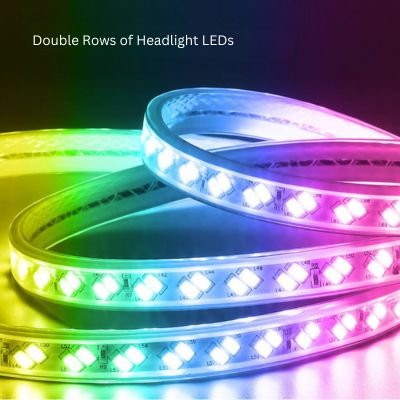

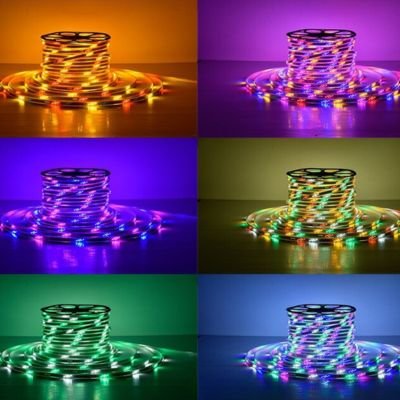

Color Changing LED Strip Lights Series
These RGB color-changing strip lights with high CRI and brightness, and use a soft board of 0.8cm to 1.4cm wide that can be suitable the indoor and outdoor applications.

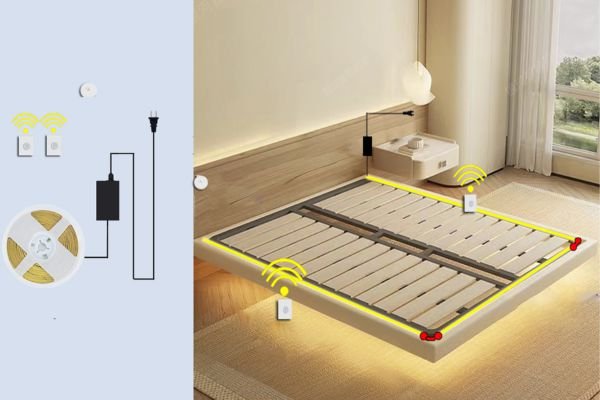

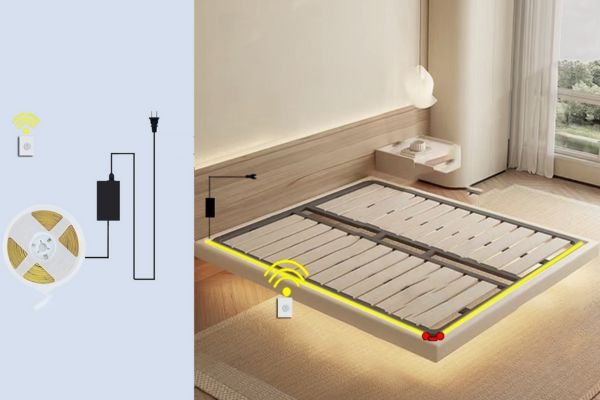

LED Strip Lights for Bedroom Series
This type is specially designed for bedrooms to glow around the bed. We have designed 6 options that vary in the strip length, motion sensor numbers, the remoter numbers in order to appropriate the specific needs.

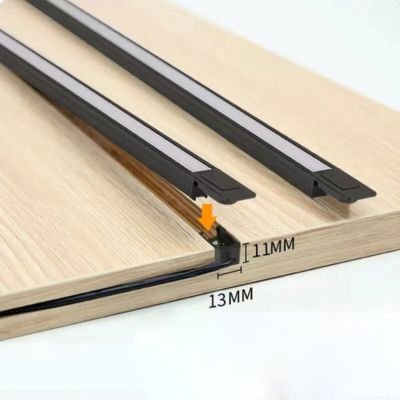

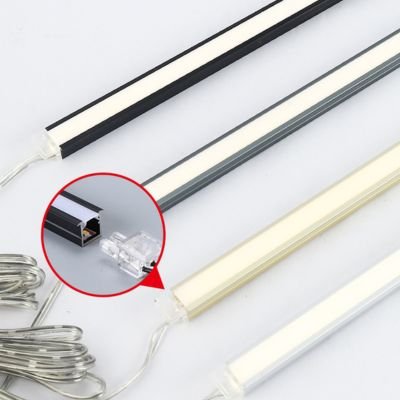

LED Strip Lights Under Cabinet Series
We can provide many selections in the rigid bar strip light that is used for cabinet laminate. Not only the appearance in various but also the features including magnetic, weld-free, more CCT options, etc.

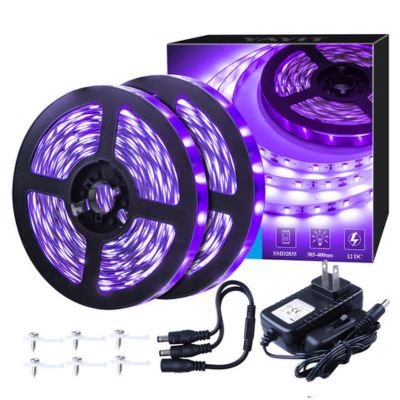

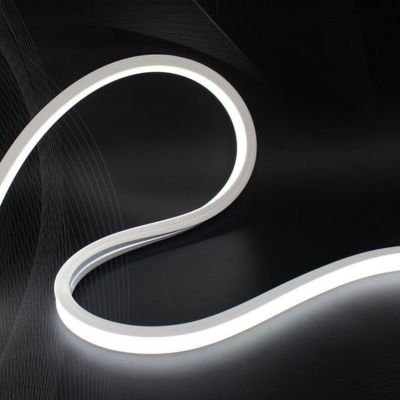

12 Volt LED Light Strips Series
12V low voltage light strips are widely used for indoor decorations. they have developed a lot of styles in LED types, materials, light colors, and control modes. We can meet all kinds of needs in your projects.

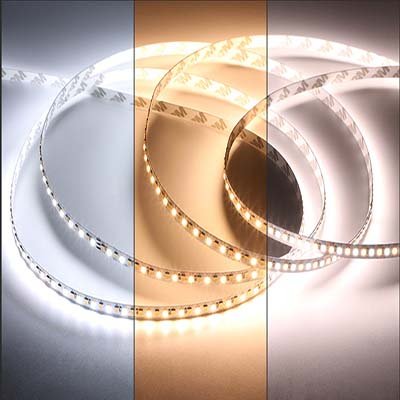

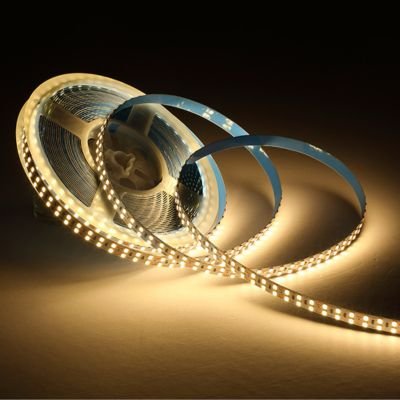

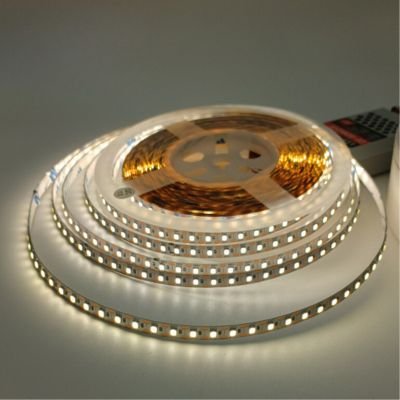

24 volt led tape light Series
24V LED tape lights are commonly concealed in suspended ceilings. They can be matched with rigid bars or used directly. With low current and high power, they can provide more lumens in a specific area.

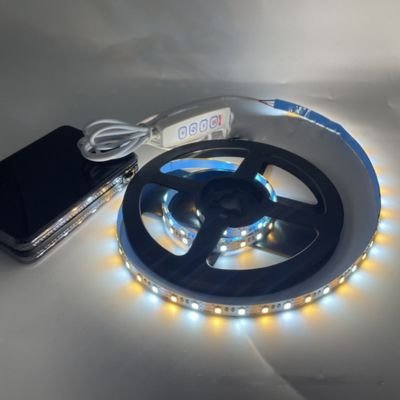

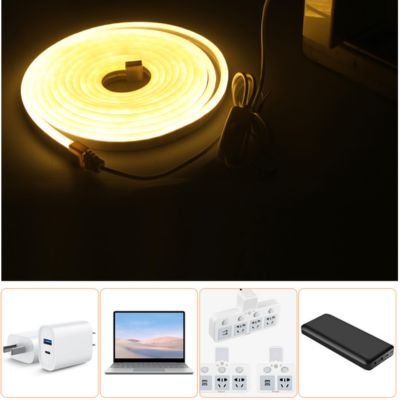

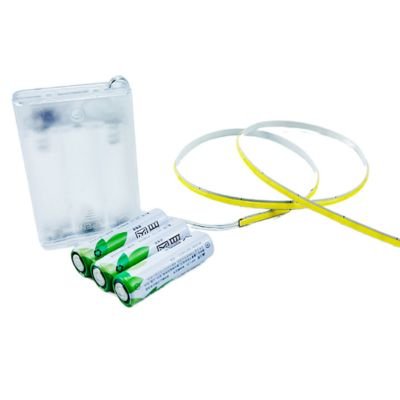

Battery Operated LED Strip Lights Series
In this series, you can choose to use the 5V USB, battery bank, DC charger, and battery box to power the strips. That can meet your outdoor camping needs, indoor-specific needs, etc.

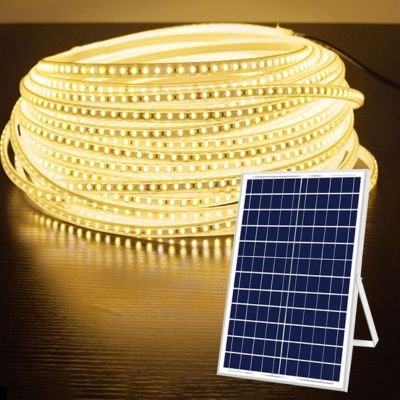

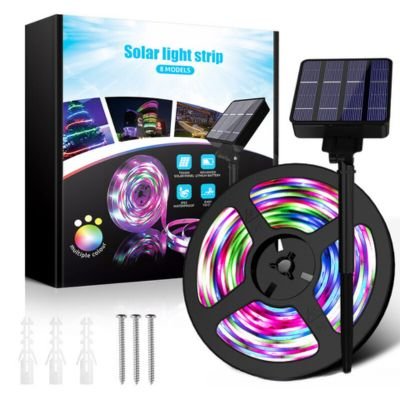

led solar strip lights Series
We also offer outdoor-grade LED strip lights with a waterproof rating of IP65 to IP67. They are powered by solar panels and lithium batteries and can be automated by solar controllers.

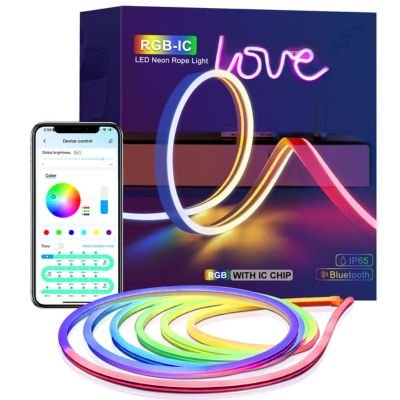

led smart strip lights Series
Smart strip lights are LED strip lights that can be controlled by a smartphone app, interact with your TV via Bluetooth, or be programmed to control the individual pixels.
26 Products Found.
Our Strip lights in multiple scenarios
These LED strip lights can be widely used in background decoration, hotels, bars, parties, cabinets, clubs, concerts, stages, interior decoration, outdoor decoration, advertising decoration, etc.
Features of our Deliberate crafted LED Strip lights
We have designed a series of features for our LED strip lighting products to ensure their competitive advantage and provide a better experience for customers.
Your peers are getting more revenue due to selling our products.
We have designed and developed tens styles to meet your needs.
We always adhere to the quality bottom line to ensure the long-term interests of our customers.
We always maintain a moderate profit margin and ensure that our prices are competitive.
You have ample pricing flexibility to create flexible marketing strategies, which can lead to increased sales.
The average lifespan of our products is higher than that of our competitors.
Smart Control
We have designed a variety of control methods to meet the needs of today’s smart control applications. We use the Tuya platform to develop our voice and app control functions.
Full Covery of Beam Angle
Our embedded LED strip lights are designed with a variety of tilt angles inside, which makes it easy to adjust the light angle of the lamp to achieve precise coverage.
In particular, it can achieve the effect of “light without lamp” in household ceiling and cabinet applications.
Excellent Light Performance
Our LED strip lights use constant current drive technology to achieve no voltage drop within 100 meters, uniform brightness, and no flicker when photographed by a camera.
high quality materials
The product uses high-strength nanomaterial, which can withstand 20,000 bending tests. The material is also non-flammable, effectively reducing the risk of fire.
Reliable circuit devices
The product uses high-brightness chips from Taiwan, which have high light output, long service life, and uniform color consistency.
It also uses a dual-layer pure copper FPC flexible ultra-thin circuit board (<1.9mm), which has good electrical conductivity and heat dissipation performance.
Solder-free
For embedded installation, you can directly insert the solderless terminal, which is time-saving and labor-saving.
self-adhesive tape
The LED strip comes with a 3M self-adhesive backing. Simply peel off the protective film and stick it on.
Perfect outdoor performance
Our outdoor LED strip lights are available in a variety of waterproof ratings, from splash-proof to submersible, to meet the needs of outdoor installation.
Discovery More about LED Strip Lights
Even professional installers need to have the necessary knowledge and key points when choosing and installing LED strips. Here are some common questions we have summarized.
Recommended installation principles
1. Choose the power supply for the LED strip correctly. The total power of the LED strip should be around 80% of the power supply's power. It should not work at full load to ensure the power supply provides the correct and stable voltage.

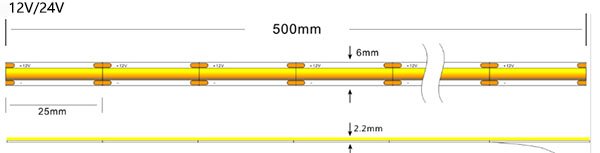

2. We recommend that the LED strip be 5 meters per section. If the length of each section exceeds 5 meters, the light brightness of the rear end will decay a lot. However, it is also necessary to consider the actual installation situation and customer requirements.
3. The back of the LED strip has adhesive tape. Due to its excellent adhesion and weather resistance, it can be glued to glass, metal, and plastic surfaces. Still, building materials such as cloth and wood will affect the firmness and durability of the adhesive. Please test the adhesion of the LED strip before installation.
4. The minimum bending radius of the light strip is 60mm. Please be careful not to bend it too tightly, as this could damage the components on the FPC and cause the light strip to malfunction.
5. To ensure water and corrosion resistance, it is recommended to inject single-component silicone (or neutral glass glue, or waterproof grease) into the terminal after the power cord is screwed into the airport, covering the exposed copper wire of the power cord for protection.
6. Non-waterproof LED strips should not be fully exposed to outdoor use. Do not touch or work on live electrical equipment.
7. It is recommended to use a power supply that has been certified to local safety standards (with short circuit protection, overvoltage protection, and overcurrent protection).
Detailed installation instructions
12V 24V Soft Board Strip Light Installation Diagram

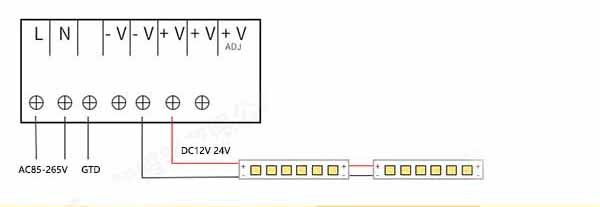

Single Strip Light Power Connection

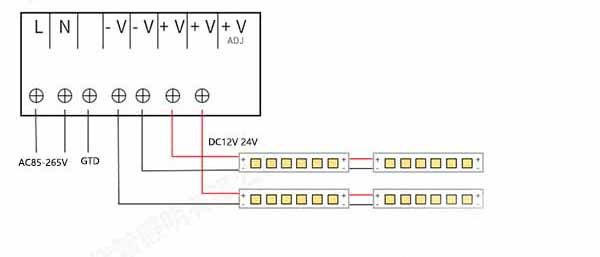

Multiple Strip Lights Power Connection
RGB Strip Light Installation Diagram

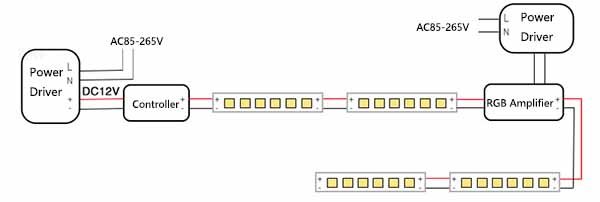

Serial connection with multiple power supplies

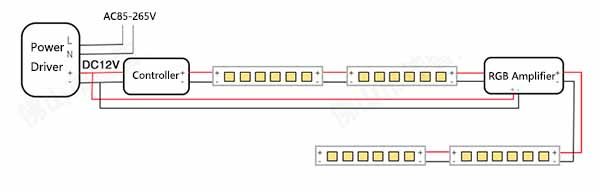

Serial connection with single power supply

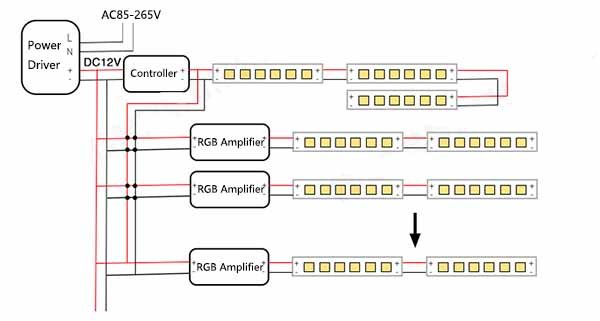

Parallel Connection with a single power supply

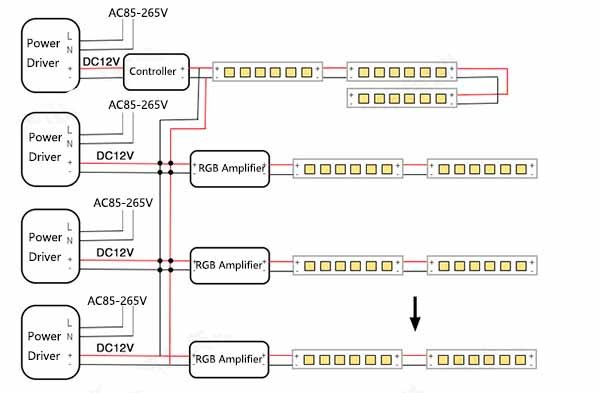

Parallel Connection with multiple power supplies
Rigid strip installation diagram

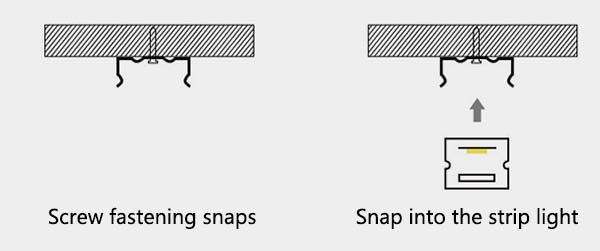

Surface mounting method (snap-in)

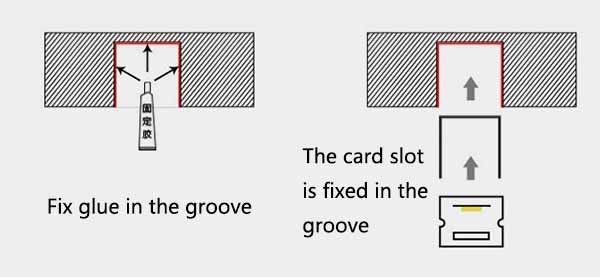

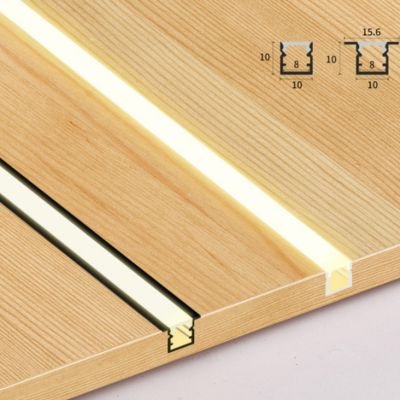

Recessed mounting method (glue)
Note: Make a good groove according to the size of the aluminum slot (leave 1mm more in width and depth).
TV background light strip installation diagram

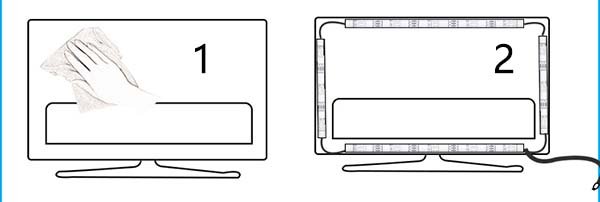

1. Stick the LED strip to the back of the TV/computer, press it firmly, and then fix the LED strip with clips or other fixings.
2. Place the color sensor in the center of the top of the TV, aiming at the screen area you want to take the color.

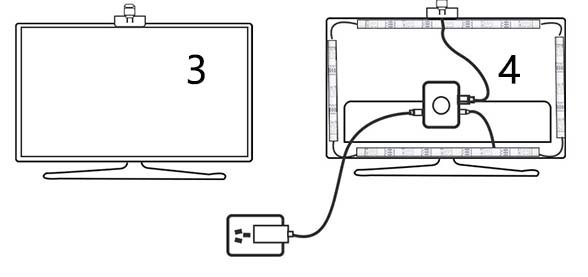

3. Insert the LED strip, power adapter, and color sensor cable into the control box.
4. Fix the control box in a suitable location near the TV.

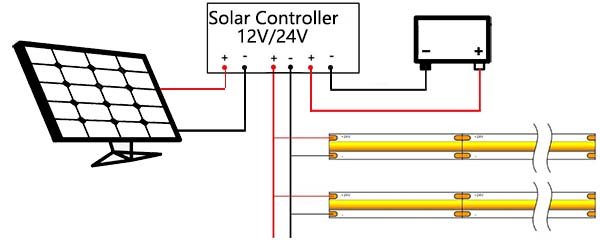

Solar strip light installation diagram
Note: Solar charge controllers come in 6V, 12V, and 24V varieties. The output voltage must match the input voltage of the solar panels and LED strips. Make sure to choose the right one for your application.
Product quality issues
- The LED strip may be damaged during shipping if the packaging is not adequate. This could be caused by impact, vibration, or other factors.
- The LED strip may not light up if the solder joints are loose. This could be caused by vibration during shipping or by poor installation.
- The LED strip may not light up if there is not enough solder on the solder joints. This could be caused by poor manufacturing or by poor installation.
- The LED strip may not light up if the solder mask is too thick. This could prevent the solder from properly fusing to the solder pad.
Installation issues
- The LED strip may not light up if the solder quality is poor. This could cause the solder joints to crack or fall off during bending.
- The LED strip may not light up if the LED strip is bent at too large an angle. This could cause the solder joints to separate from the copper foil.
- The LED strip may not light up if the LED strip is squeezed too hard during installation. This could damage the chip or solder pad.
- The LED strip may not light up if the voltage is too high or unstable. This could cause the LED strip to burn out.
- The LED strip may not light up if the LED strip is twisted during installation. This could cause the solder joints to fall off.
Issues that arise during use
- The LED strip may not light up if the power supply is not working properly.
- The LED strip may not light up if an LED bead is damaged or in poor contact.
- The LED strip may not light up if the wiring is not secure or connected to the power supply correctly.
- The LED strip may not light up if the controller is not working properly.
- The LED strip may not light up if the driver board is not working properly.
- The LED strip may not light up if the LED strip is damaged.
If you have tried the above methods and the LED strip is still not working, it is best to consult a professional for help.
In addition, it is important to follow the correct installation and use instructions to avoid future problems.

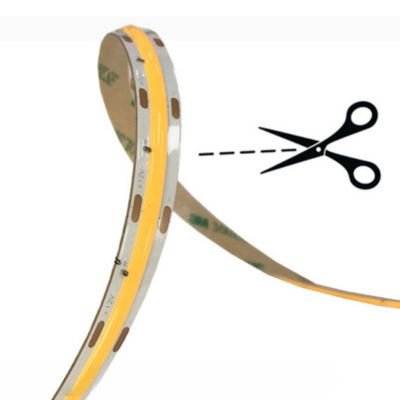

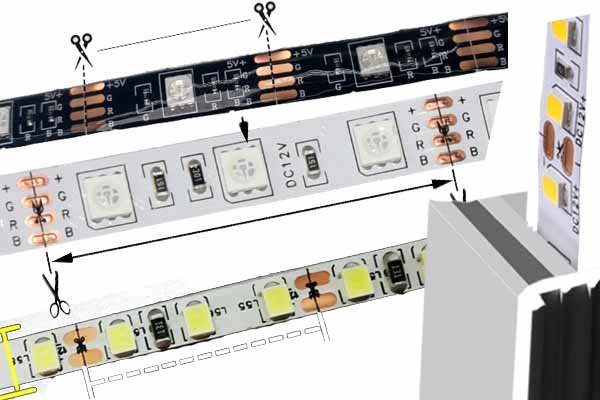

Sure, you can cut the LED strip to the length you need. However, you can't just cut it anywhere. You need to cut it at the designated cutting points, otherwise the lights may not turn on or may light up unevenly.
The following is an image of the cutting marks. The marks are typically spaced 10 cm apart.
As long as the total load does not exceed the rated load of the controller, and the input voltage is the same(DC12V or 24V), all LED strip lights can be powered and controlled by a single power supply.
Reliable LED Strip Lights Manufacturing Company
Our automatic SMT production line group can help you achieve all kinds of strip lighting product manufacturing. And we have invested in more machines to elevate our production capacity every year.
We use lead-free solder paste and wave soldering, which offer higher reliability, lower failure rates, and longer lifespan. The utilization of advanced soldering materials and techniques enables us to achieve superior welding quality and increased production efficiency.
Furthermore, lead-free wave soldering employs environmentally friendly materials, thus complying with modern environmental requirements and contributing to environmental protection and human health.
LED Strip Lights Manufacturing Process
We have established a series of production management and testing processes to ensure our products are more reliable in quality and longer life. We are committed to delivering your order on time and in a satisfactory condition.
Service Without Any Detours
Our experienced customer service team is here to provide you with prompt and professional answers to your urgent questions.
Located in the lighting industry manufacturing center, we can meet all kinds of your specific needs from cheap or expensive types.
We can supply multiple kinds of strip light including residential indoor and commercial outdoor applications for your projects.
We have accumulated 100+ indoor lighting clients all around the world such as distributors and contractors.
And we always provide warm heart service for you forever!
Yes, we provide tailor service for large orders. We can also provide private label services for small and medium-sized orders.
Yes, our strip lights are compatible with dimmer switches. If your project uses of smart home system, please consult our sales engineers. By the way, We have been launching smart control models all the time.
We offer tiered pricing for different order quantities. Please contact us for more information.
100M to 500M accroding to types.
