China Full Range of LED Tube Light Manufacturer
We produce and sell all types of LED tube light-related products, including T8 and T5 LED fluorescent lamps, integrated tube lights, linear tube lights, and tri-proof tube lights.
LEDBLOC's LED Tube Lights
LEDBLOC’s self-developed LED high-efficiency tube lights have soft light, high luminous efficiency, high energy saving, low loss, long life, safety, and environmental protection. They are made of high-quality materials and are the preferred products for lighting energy-saving projects. They help enterprises save energy, reduce carbon emissions, reduce costs, and improve efficiency.
In the business of LED fluorescent tubes, you often need standard products and customized products with specific requirements, such as color temperature, light efficiency, logo, and packaging.
In addition, before placing an official order, we must go through many complex processes, such as sampling, testing, sample delivery, feedback confirmation, and sample modification. Finding a supplier that can provide customers with a full range of products and services is not easy.
In order to better serve such customers, we are not only able to produce products that meet customer needs but also have a complete engineering department that can cooperate with customers to complete their customized needs.
You can contact our sales Engeering quickly by filling out this form!
Collections of LEDBLOC 's LED Tube Lighting
For years, we have been committed to the development, production, and sales of high-quality LED tube lamp products, which has greatly expanded our product categories. These products are reliable products that have been rigorously selected by the market.

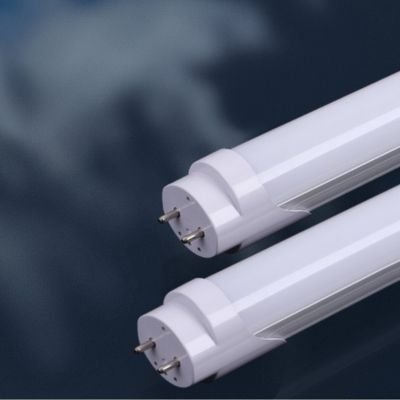

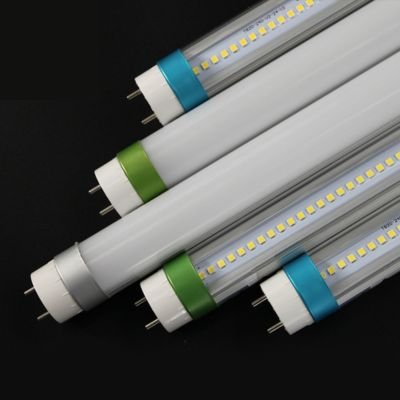

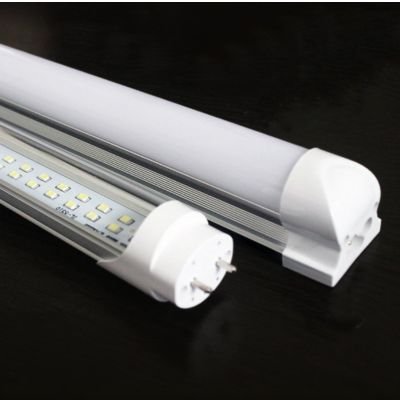

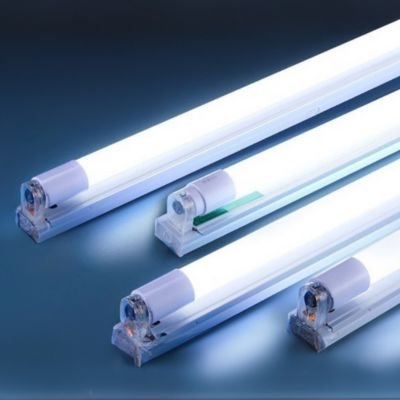

T8 LED Tube Light Series

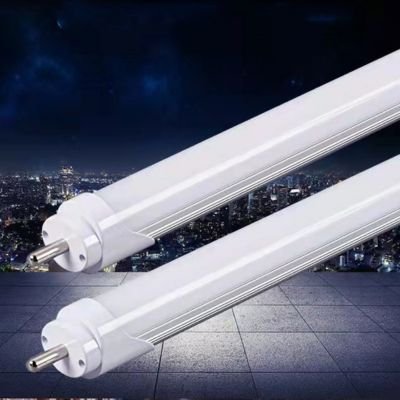

We offer competitive prices on G13, integrated, and FA8 single-needle T8 LED tubes. You can customize the CCT, CRI, Size, light efficiency, material, cover type, end cap type, etc.

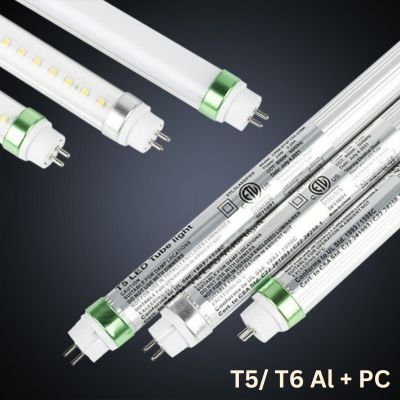

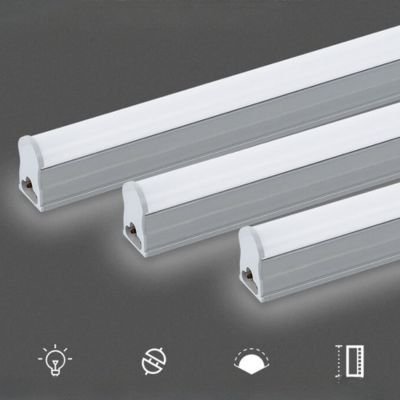

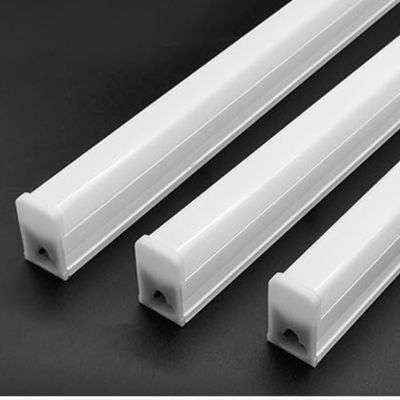

T5 LED Tube Light Series

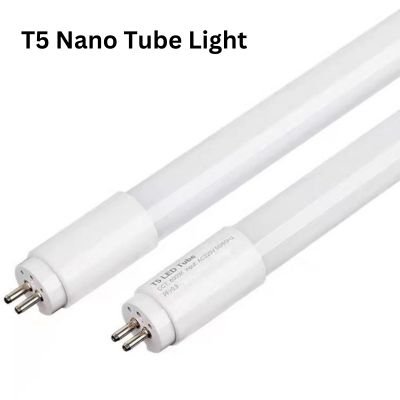

We offer integrated and split T5 tubes in aluminum plastic, nano material, and glass structures, with customized shapes and higher quality available. Our wide range of AC85-265V isolated and non-isolated driver power supplies ensures wider applicability.
Motion Sensor LED Tube Light Series
Our motion sensor tubes feature a more stable design, with more precise and responsive sensing distance and motion. These tubes are commonly used in underground parking garages, corridors, and walkways with high energy-saving requirements.

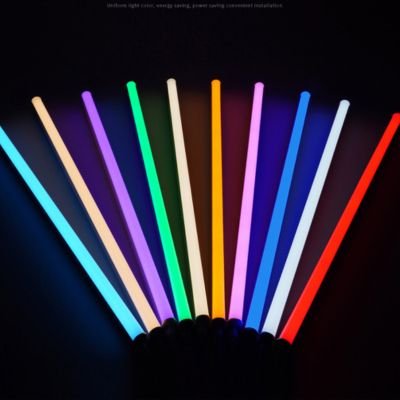

Color Changing LED Tube Lights Series
Actually, we can customize the light color type of any of our LED tubes. Simply change the LED chip type and color to achieve the desired effect. We can provide UV Black tubes and UV-resistant yellow tubes.

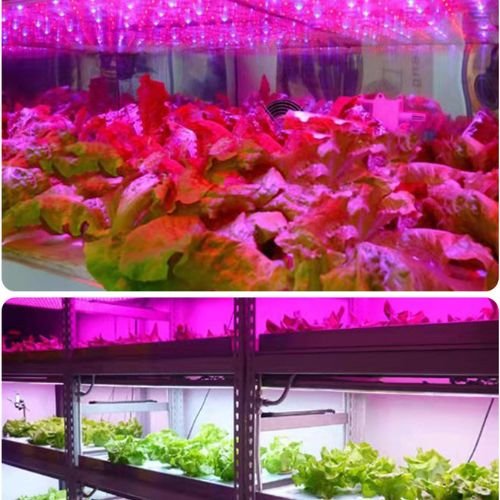

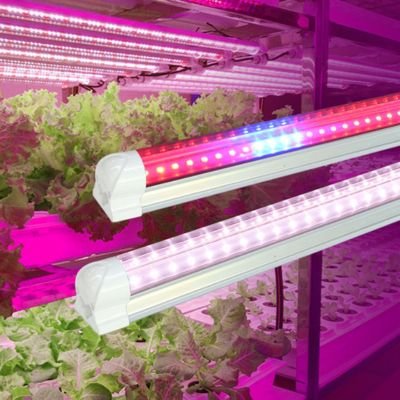

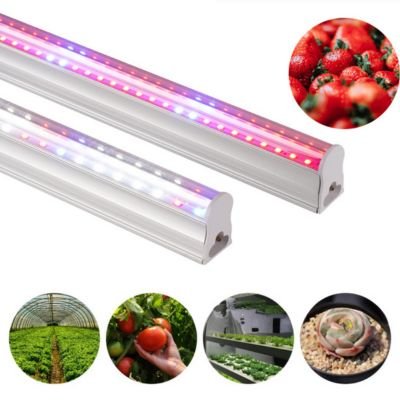

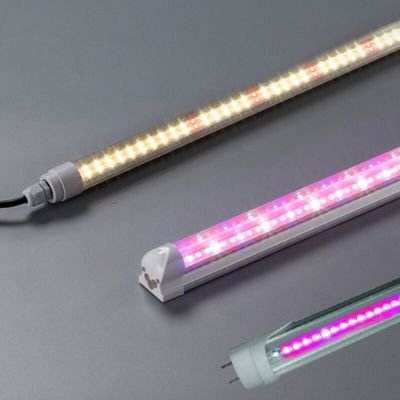

LED Grow Tube Lights Series
Plant Grow lighting is becoming increasingly popular. We can supply custom-spectrum and full-spectrum grow tubes to meet the needs of different plant factories. We also offer waterproof Grow tubes with enhanced protection for special use scenarios.

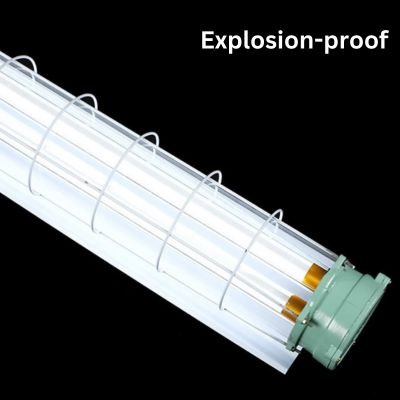

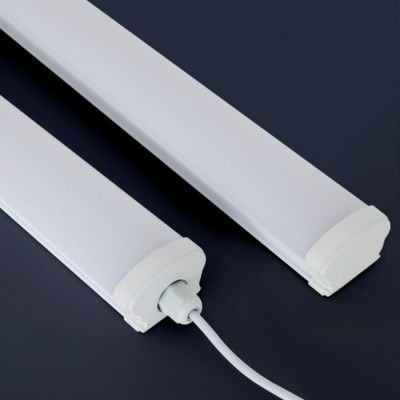

Industrial LED Tube Light Series
Industrial or specific fields often require better-protected tubes. We can provide IP65-rated fixtures, IP65-rated linear tubes, and T8 glass or all-plastic waterproof tubes to meet industrial lighting needs.

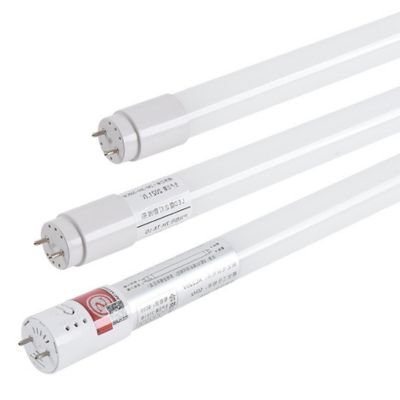

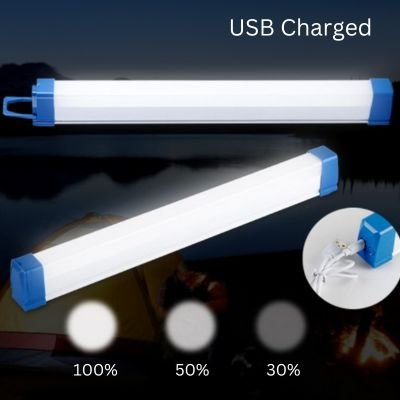

Emergency LED Tube Light Series

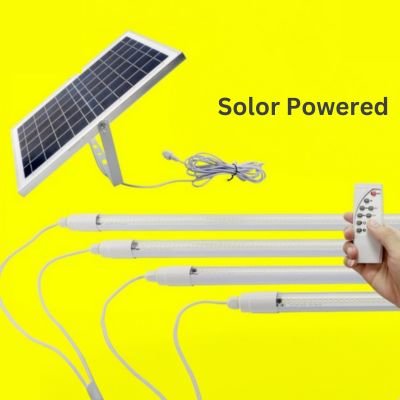

Emergency LED tubes are used in a variety of scenarios, including fire emergencies, USB portable charging tubes, and solar power supply tubes. Each of our battery tube lights is hot selling.

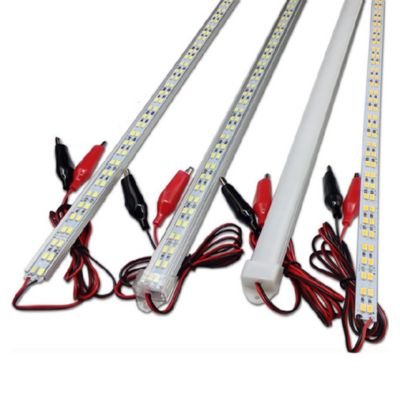

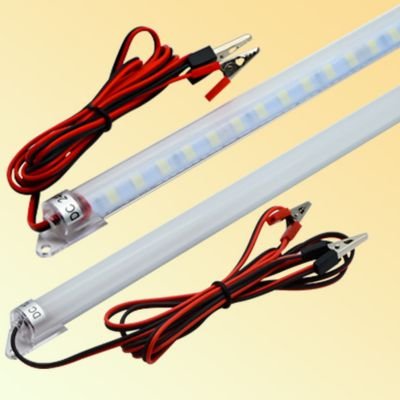

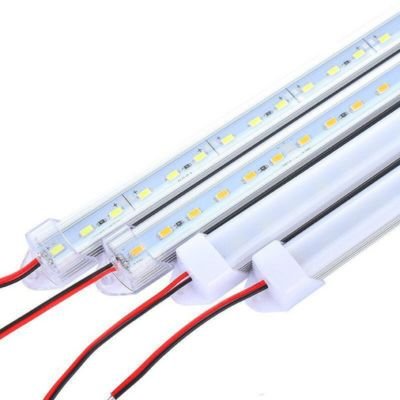

DC LED Tube Light Series
12V/24V tubes are suitable for low-voltage circuits, such as counters and refrigerators. We can provide a variety of low voltage tubes, including T8, transparent, waterproof low voltage tubes, and low voltage LED Tube strip circuit boards.
Complementary Products of LED Fluorescent Tube
As an LED tube manufacturer, we can provide a wide range of unconventional and even customized tubes. We often produce various samples for customers to meet their specific requirements. Such as retrofit tubes, replacement tubes, and single 36W tubes.
36 Products Found.

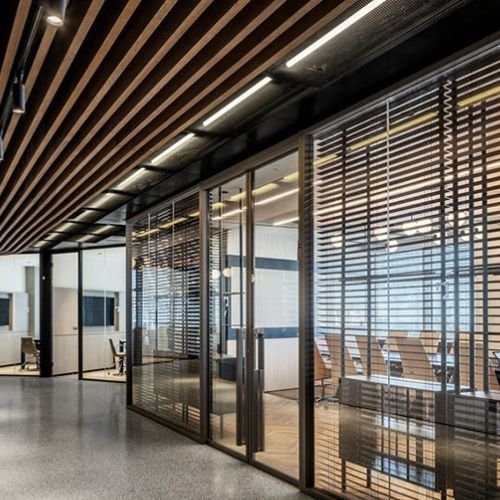

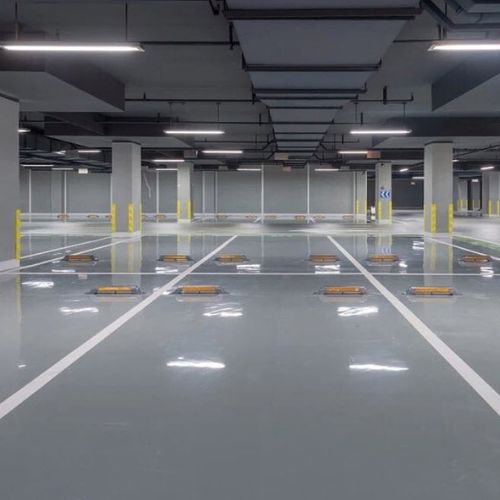

Real Word Applications ShowCase
Our LED tubes are available in a variety of colors and are suitable for a wide range of applications, including parking lots, supermarkets, shopping malls, factories, workshops, warehouses, clean rooms, cold storage, plant factories, and large office spaces.
Features of our Deliberate crafted LED tube Lighting
In the face of increasingly fierce competition, we are constantly improving our product selling points and updating and iterating to meet customer needs, thereby enhancing our competitiveness.
We have never had any order interruptions, and I believe our customers’ sales are also doing well.
We offer dozens of styles, and we are always working to create new ones to meet customer demand.
Our quality control is so good that customers rarely complain about quality.
You will not be too concerned about price in a competitive market.
Help you to increase sales and expand your business.
We aim to improve product competitiveness while ensuring the service life.
Reasonable photoelectric structure
We design the product with a rational layout to ensure stable heat dissipation. We also use high-quality LED chips, which generate less heat and have a longer lifespan.
Excellent luminous effect
Our lamps have a soft and uniform glow without dark spots, and the joints are seamlessly connected without dark areas. They are very suitable for use in high-end venues.
top-quality materials
Our glass tubes and PC covers are made of high-transmittance thickened materials, which have good transparency, plasticity, and soft light. Our aluminum profiles are made of high-quality aviation aluminum by stretching, with good texture.
More CCT Options

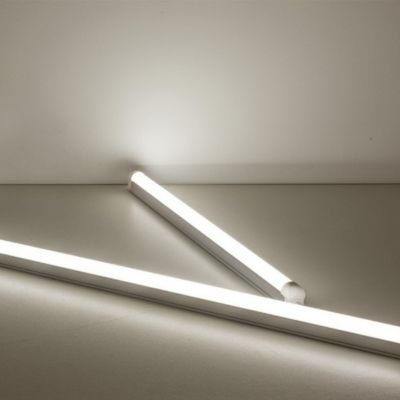

We offer three common light colors of 3000K, 4500K, and 6000K, as well as colored lights such as red, yellow, blue, and green. We can also customize LED chips with CRI>90.
Discovery More about Tube lights
We have compiled a list of valuable questions for you, including installation, use, maintenance, and replacement.
what is t8 T5 led tube light
In the LED tube light industry, the letter "T" represents the diameter of the tube, and the number represents the circumference. Therefore, a T5 tube refers to a tube with a circumference of 5 cm, and a T8 tube refers to a tube with a circumference of 8 cm. The diameter of a T5 tube is 8/5 inches, or about 16 mm. The diameter of a T8 tube is 1 inch or about 25 mm. G13 tube light G means gap 13, and the 2-pin gap is about 12.6-13 MM.
High luminous efficiency:
- Glass tubes can reach 110 lumens per watt, and aluminum plastic tubes can reach 105 lumens per watt. 18 watts can replace traditional 36-watt fluorescent lamps.
High illuminance:
- Adopts special optical design to focus the light within the required illumination range, reduce space waste, and thus improve illuminance. For the same power of tubes, the illuminance is increased by more than 30%, reducing the number of lamp installations and saving costs.
Long life:
- Using high-quality aluminum material for heat dissipation, widening the 25 copper circuit board, adopting large chip LED beads, high-quality power components, good heat dissipation, small light decay, five-year warranty, and the service life can reach more than 80,000 hours.
Good performance:
- PF>0.98, no flicker, wide voltage, and can pass global certification.
High return:
- Maintenance-free, low cost, and fast payback period.

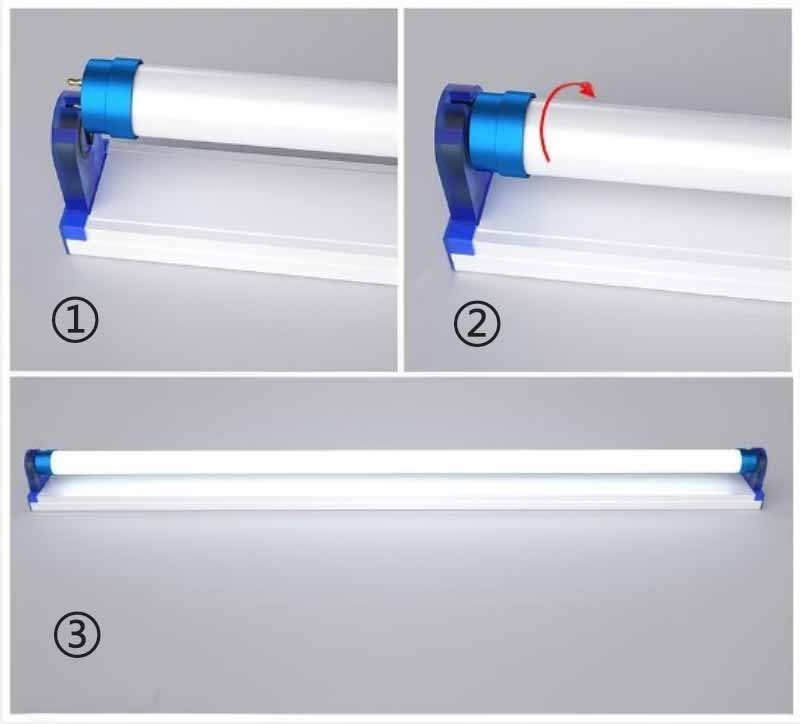

T8 and T5 led tube light installation
1. Insert the pins of the LED tube into the slots on both ends of the fixture.
2. Turn the tube clockwise 90 degrees.
3. Turn on the power and the light will turn on. If the light does not turn on, remove the tube turn it in the opposite direction and tighten it again.

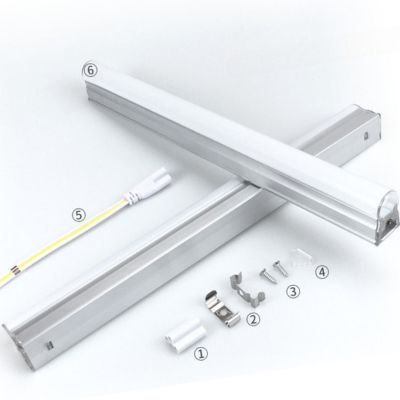

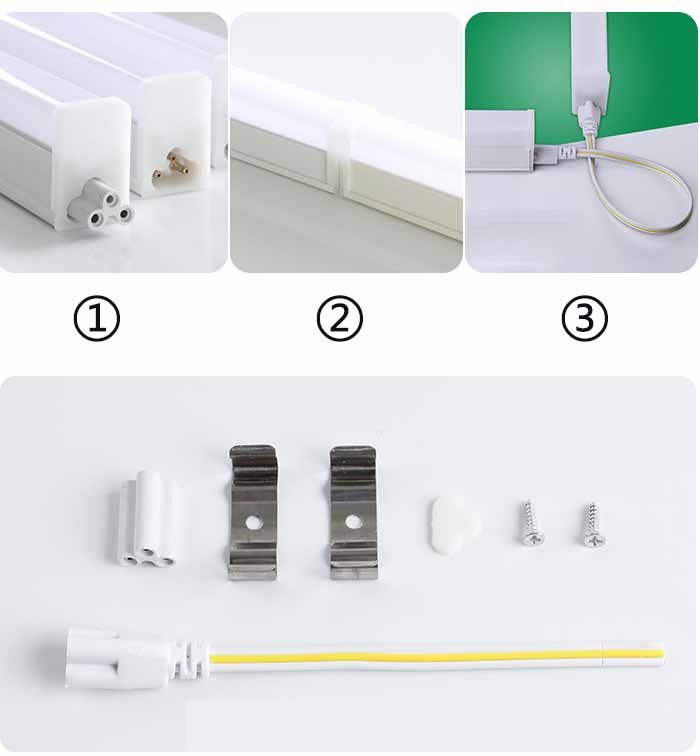

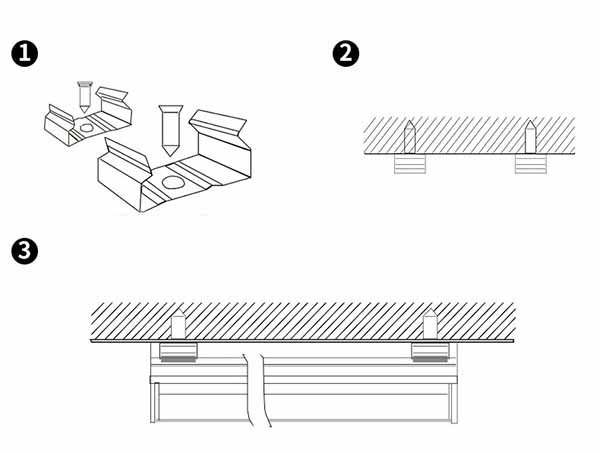

Integrated T8 and T5 LED tube light installation
1. Install the clips on the wall at the corresponding position.
2. Adjust the position of the clips accurately.
3. Press the lamp holder into the clips to complete the installation.
4. It is recommended to connect five or six LED tube lights in series.
5. The LED tube lights can be seamlessly connected.
6. Use connecting wires at corners.
Note:

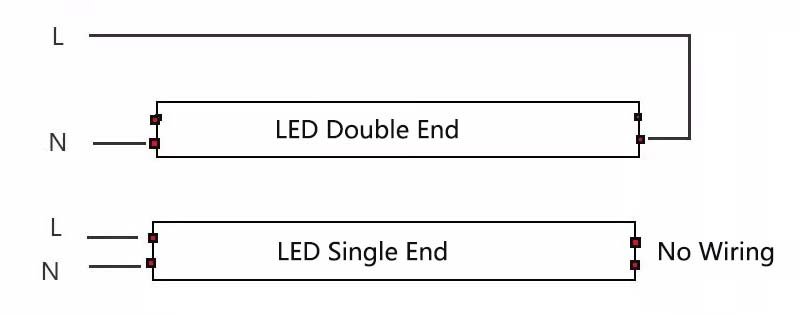

How to distinguish double-end or single-end tube light
- Double-ended LED tubes have two terminals, one for L and one for N.
- Single-ended LED tubes have one terminal for L and N, and the other terminal is empty.

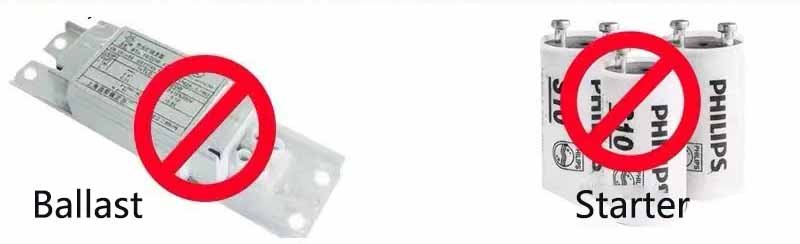

There are no ballast and starter of LED tube light.
Troubleshoot LED tube lights
led tube lights not working
1. Check if the circuit is powered on.
2. Check if the contacts on both ends of the fixture are in good contact (turn the LED tube in the opposite direction and tighten it again).
3. If the LED tube is dim or flickering, it means the LED tube is damaged and needs to be replaced with a new one.
4. LED tubes that have been used for more than two years are prone to failure. If you have tried multiple methods and still cannot get the LED tube to turn on, you can determine that the LED tube is burned out and needs to be replaced with a new one.

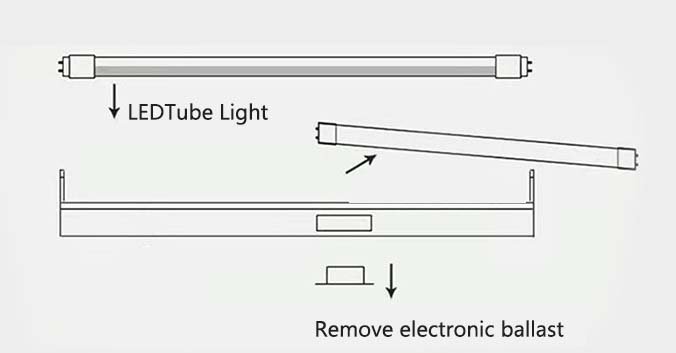

Yes, our T8 and T5 600mm 900mm 1200mm LED tube lights can match your existing fixtures, but you should do some retrofit work.

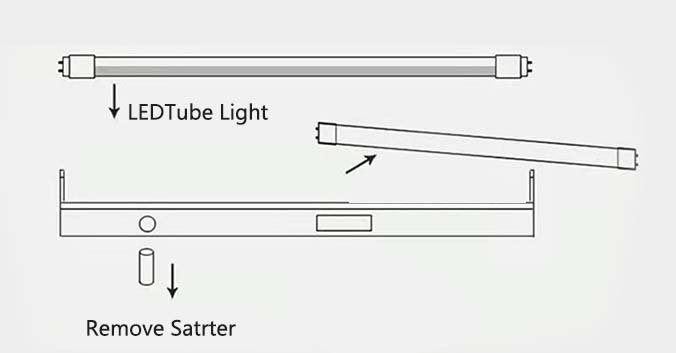

If it is an inductive ballast (which will have a starter) fixture, you just need to remove the starter.
If it is an electronic ballast fixture, you need to remove the electronic ballast and reconnect the wires. For example, for G13 pins, you can connect one end to the neutral wire and the other end to the live wire.
18W led tube VS 36W fluorescent tube | ||||
Parameters | 18W LED Tube | 36W fluorescent tube | Comparison of benefits | |
Comparison of parameters | Power | 18W | 36W | Energy saving 63% |
Efficacy | 110Lm/W | 40LM/W | ||
Luminous flux | 1980LM | 1440 | ||
illuminance of 2.5m ground | 62Lux | 40Lux | ||
Electricity cost per lamp | Daily electricity consumption | 18W*24H=432WH | 36W*24H=864WH | Energy saving 432WH per day |
Daily electricity charge | 0.432Kwh*0.12=0.052USD | 0.864Kwh*0.12=0.1USD | Save $0.052 per day on electricity | |
Monthly electricity consumption | 432W*30Days=12960W | 864W*30Days=25920W | Energy saving 12.96KWh per month | |
Monthly electricity charge | 12.96Kwh*0.12=1.5552 USD | 25.92Kwh*0.12=3.11 USD | Save $1.5552 per month on electricity | |
Annual electricity consumption | 432Wx365=157680WH | 864Wx365=315360WH | Energy saving 157.68KWh per year | |
Annual electricity charge | 157.68kwh*0.12=19 USD | 315.36Kwg*0.12=38 USD | Save $19 per year on electricity | |
Maintenance cost | LifeSpan | 50000 Hours/5-10 year | 20000Hours/2-4 year | It can be used for an additional 3-6 years |
Maintenance cost | / | 3 USD/ PCS | Save $0.6 Per year | |
Replacement cost | / | $9.00 per pieces | save $1.5 Per year | |
Evaluating Values of Energy Conservation | Every LED tube light saves 19 USD in electricity costs per year, plus 0.6 USD in maintenance costs, plus 1.5 USD in replacement costs, for a total of 21.1 USD. | |||
Save $105.5 per lamp for 5 years. | ||||
Assuming that a garage lighting system uses 1,000 LED tube lights, it can save 788,400 kWh in electricity costs over 5 years. This translates to a total savings of $527,500 in electricity and maintenance costs. | ||||
An 18W LED tube light and a 36W traditional fluorescent tube light both cost around $9. Based on the results of the table above, we can see that an LED tube light can save an average of $21.1 per year. Therefore, it can pay for itself in half a year.
Reliable Tube Lights Manufacturing Company
We can provide OEM or ODM services for any style of LED tubes, which are based on our advanced production processes and excellent production workers accumulated over the years.
We can tailor our production processes to your engineering orders or distribution orders, which allows us to flexibly optimize the production process and ensure that your orders are delivered on time.
LED Tube Lights Quality Control Process
All of the lamp tubes we produce for you are 100% strictly quality-controlled, ensuring that the products delivered to you are all qualified. Aging for more than 8-24 hours is very necessary, and must be carried out in full.
Efficacious Service
We have accumulated a wealth of customer demand data in the field of LED tubes. We can solve all your related problems and provide full tracking services.
As a leading LED indoor lighting enterprise in the core of China's industrial belt, our products have been sold to over 60 countries through our long-term and unremitting efforts. Our products have received many positive reviews and have been recognized by industry insiders.
We have a well-established pre-sales and after-sales support system, which can help you solve many real-world problems, such as new product prototyping, testing, and compliance testing. We can help you complete all of these tasks.
We have fully considered your current situation, and we will guarantee a better price for our products while meeting your needs.
Please complete the Form to contact our lighting specialist.
Yes. We can private label your tube lights for contractors. You can customize the appearance, CCT, CRI, lumens, power Drivers' type, and so on.
Yes, our products have passed the regular certifications, and we can help you to get your local certification reports.
2 to 5 years according to your requirements.
If you have Current or forward orders, please get in touch with our sales engineers to get professional services.
